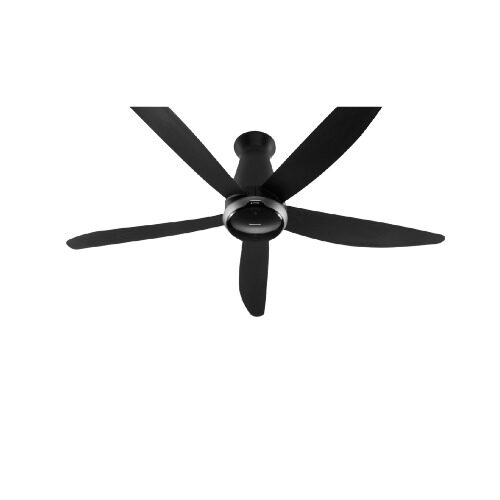

60″ 5-Blade DC Motor Ceiling Fan with ECONAVI

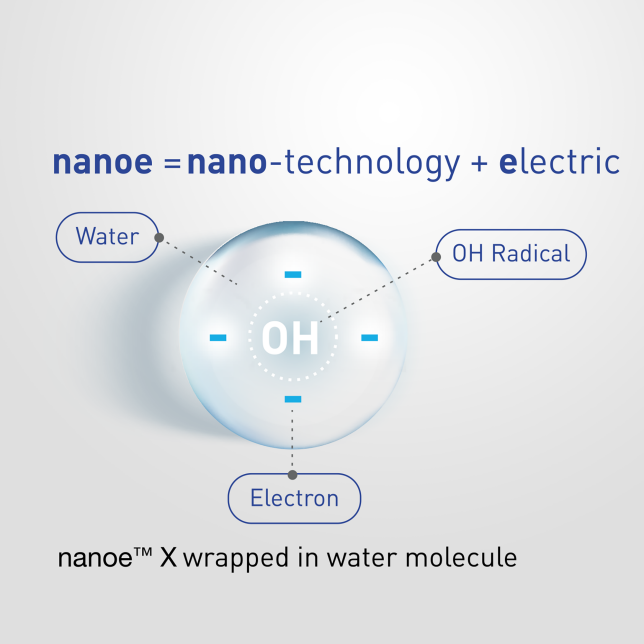

What is nanoe™ X

A nanoe™ X is a fine (5 to 20nm) and weak acidic water particle with a reactive substance and an electric charge, which effectively inhibits viruses, bacteria, odors and allergens.

How Does nanoe™ X work?

nanoe™ X captures the virus, OH radical takes away hydrogen (H) from virus, then the radical turns into water to inhibit the virus.

7 effects of nanoe™ X

nanoe™ X effectively inhibits viruses, bacteria, odors and allergens. A nanoe™ X device generates at a high rate of 4.8 trillion per second.

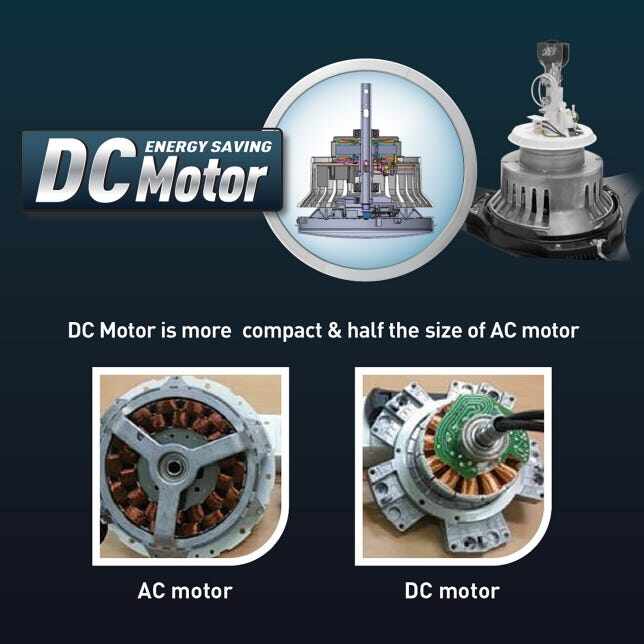

More Compact DC Motor Unit

Built-in PCB to create a mono form outlook Higher Motor Power Output For higher air volume and wider air flow Advantages of a DC motor: 1. Uses less energy – compared AC motor 2. Quiet operation 3. More compact and lighter motor

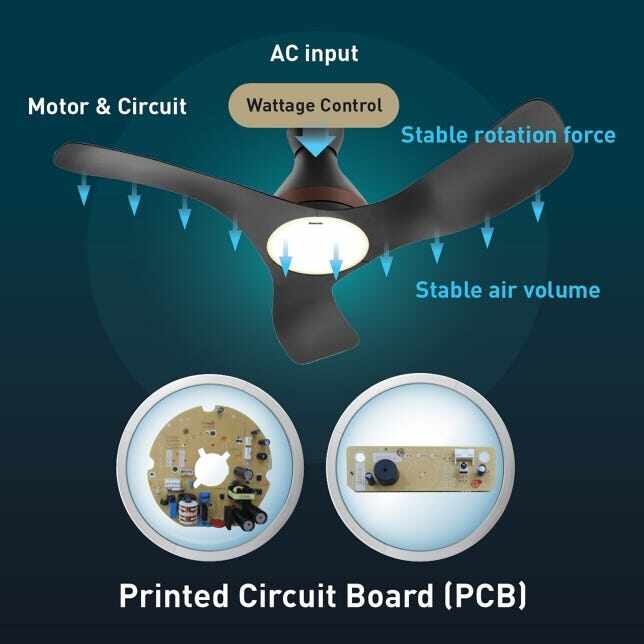

New Printed Circuit Board (PCB)

Compact Size Circuit A 3-in-1 and smaller size components driven by high voltage. Constant Wattage Control Maintain constant wattage control. Stable delivery of large air volume & wide airflow even when there is fluctuation in voltage. Memory Function Memorizes last setting even when wall switch is switched off. Fan and light will operate at previous fan speed or light setting when the ceiling fan is turned on the next time.

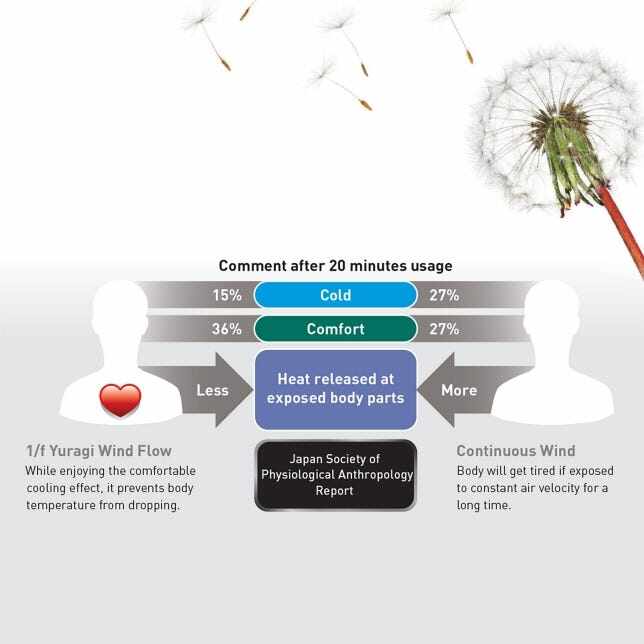

1/f Yuragi (Natural Breeze Function)

These fans are equipped with 1/f Yuragi function which is a fluctuating pattern to generate a gentle breeze. By this sophisticated formula, in varying air velocity and controlling wind force, these new ceiling fans give you a peaceful and comfortable feeling.

Specifications

Model No

F-M15MEVBKQH/RH

Motor Type

DC Motor (New Generation)

1/f Yuragi

Yes

Remote Control

Yes

Blade Type

PPG Materials

Color

Black

Dimension

Width (mm)

Ø1500 mm (60”)

Height:

Short pipe: 314mm

Long pipe: 392mm

Power Consumption

Low (W)

4

High (W)

43

Fan Speed

Low (RPM)

80

High (RPM)

235

Air Velocity

(m/min)

210

Air Delivery

(m³/min)

245
