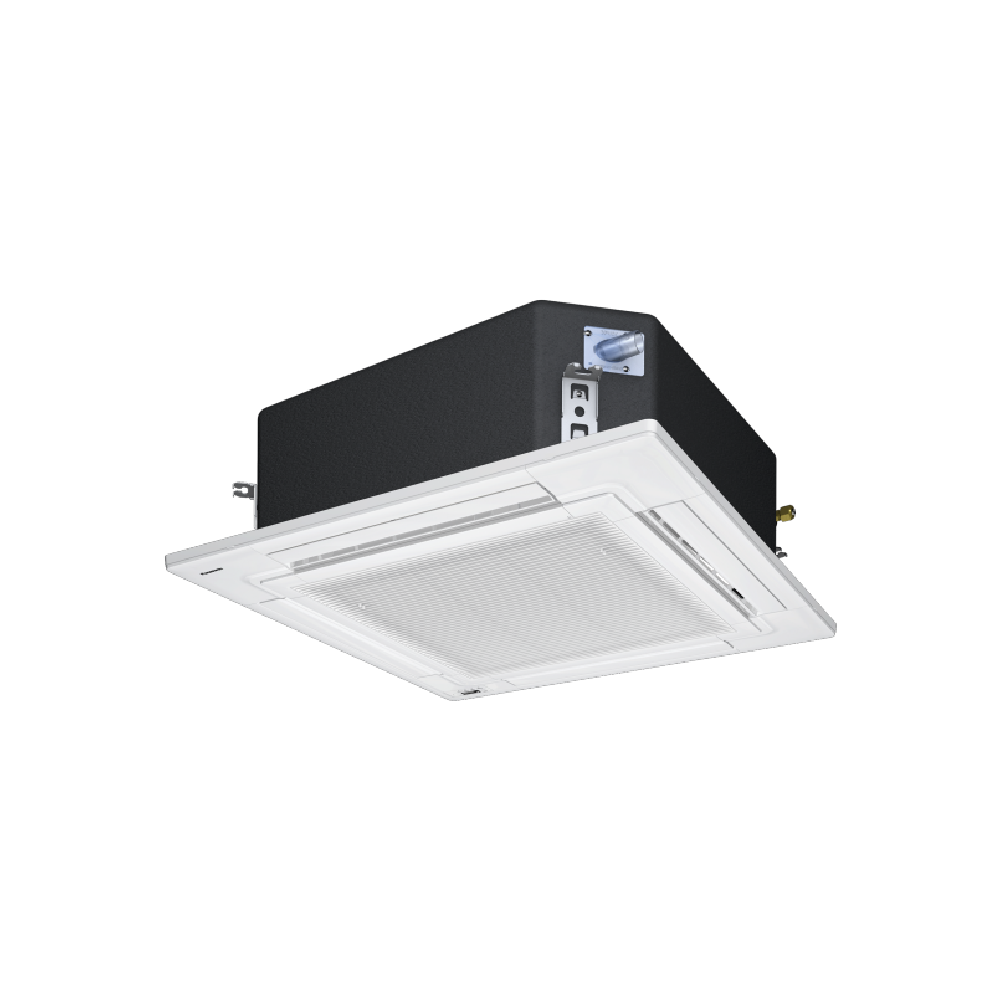

2.5 HP R32 Non-Inverter 4-Way Cassette Air Conditioner S25PU1H5C1

Features:

Improve the Quality of Your Air with nanoe™ X
24-hour nanoe™ X Air Protection
nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, and mould, and hazardous substances contained in PM2.5. Providing effective deodorisation and improving the quality of your air. nanoe™ X functions in the cooling mode and is maintenance-free, helping you enjoy 24 hours of quality air while keeping your costs down.

nanoe™ X Effectiveness Proven in Large Space
A third-party certification organization SIRIM Berhad (SIRIM), conducted the performance experiment using a 4-Way Cassette equipped with a nanoe™ X device to inhibit hexadecane, a chemical contained in PM2.5.
*(1) Testing method: Measured the amount of attached organic substances in an approximately 802 m³ sized test room. (2) Inhibition method: nanoe X Generator Mark1 released. (3) Test substance: Hexadecane (4) Test result: Inhibited 92% in 8 hours (ETRC257/16/1402 (R479/19))

Industry-Leading Airflow for Cooling Comfort
Cools the Area Quickly
The Turbo Fan with Twisted 3D Blades delivers big and powerful airflow that instantly makes spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.

Delivers Cool Air from High Ceilings
A wider main flap and sub-flap increase airflow, and a wider-angle jetting port creates a longer airflow. Cool air can reach from a maximum height of 5 meters, making even spaces with high ceilings and open spaces comfortable.
Note: 4-Way Cassette 36/42/50PU type

Industry-Leading Airflow for Cooling Comfort
The air delivered in four directions from the wide flap creates a 360 degree airflow, spreading cool air to every corner of spacious environments. Thus, the entire room is cooled, ensuring the comfort of your customers and staff.

Double Insulation to Prevent Dew Condensation
The unit prevents water leaks due to condensation. The interior of the indoor unit of the air conditioner is cold, so when it comes into contact with hot air outside, condensation occurs, causing water leaks. Panasonic adopts insulation materials both inside and outside of the unit to guard against condensation and water leaks.

Flat Horizontal Design That Conditions the Interior
Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.

Wireless, Wired Remote Controller
The indoor unit comes with a wireless remote controller and receiver. A wired remote controller is also available (sold separately).

Flexible and Easy Installation
A Drain Height of Up to 850 mm from the Ceiling Surface
The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.

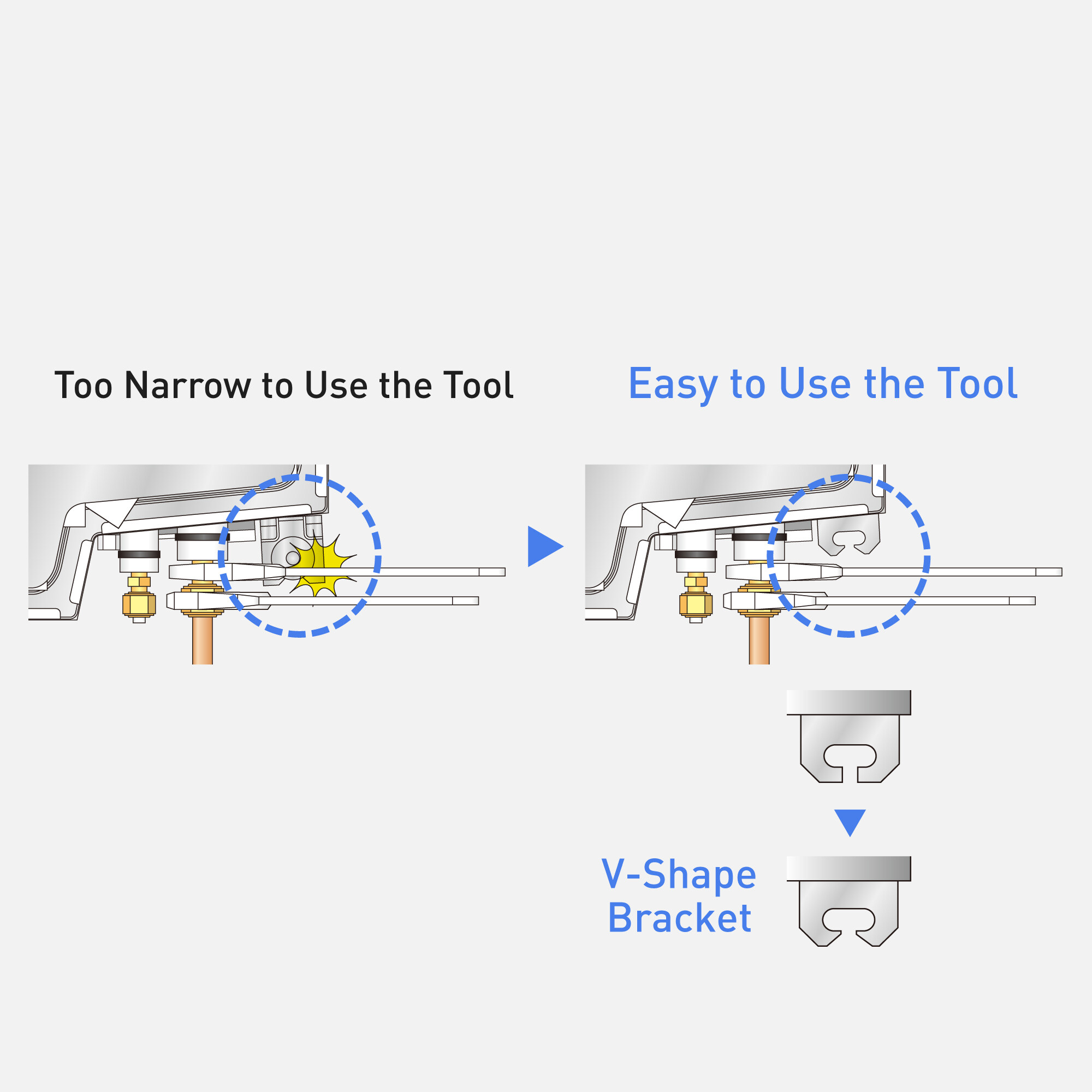

Easy Installation Design

For easier installation, the design allows space to use tools without damaging the interior. Also, by improving the bracket’s shape into a V-shape, it is easier to hook the anchor bolts.

Specifications:

Cooling Capacity: 26,000 BTU/h
Indoor Unit Dimensions: 25.6 cm (H) × 84 cm (W) × 84 cm (D)
Panel Dimensions: 3.35 cm (H) × 95 cm (W) × 95 cm (D)
Indoor Unit Weight: 21 kg
Panel Weight: 5 kg
Airflow Volume: 28.5 m³/min (1,006 cfm)
Sound Pressure Level (Hi/Lo): 46/35 dB(A)

Sound Power Level (Hi/Lo): 61/50 dB
Refrigerant: R32
Power Input (Rated): 2.13 kW
EER (Energy Efficiency Ratio): 3.58 W/W
Current: 9.4 A
