2.0 HP R32 Inverter NX Series Standard 4-Way Cassette Air Conditioner S1821PU3H1+U18PR1

Features:

More Efficient Air Protection with nanoe X Generator Mark2
24-hour nanoe™ X Air Protection
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

Effective at Eliminating Odours in Half the Time
The nanoe X Generator Mark2 reduces odours by as much as 1.8 levels* in just half the time of the conventional nanoe X Generator Mark1.
*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more.
[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

Inside Cleaning Function Prevents Mould
nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth.
*If you wish to set the inside cleaning function off, use the wireless RC to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.

Smart Power Saving with IoT
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

Industry-Leading Airflow for Cooling Comfort
Cools the Area Quickly
The Turbo Fan with Twisted 3D Blades delivers big and powerful airflow that instantly makes spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.

Delivers Cool Air from High Ceilings
A wider main flap and sub-flap increase airflow, and a wider-angle jetting port creates a longer airflow. Cool air can reach from a maximum height of 5 meters, making even spaces with high ceilings and open spaces comfortable.
Note: 4-Way Cassette 3448PU type

Cools Every Corner of Spaces
The air delivered in four directions from the wide flap creates a 360 degree airflow, spreading cool air to every corner of spacious environments. Thus, the entire room is cooled, ensuring the comfort of your customers and staff.

Double Insulation to Prevent Dew Condensation
The unit prevents water leaks due to condensation. The interior of the indoor unit of the air conditioner is cold, so when it comes into contact with hot air outside, condensation occurs, causing water leaks. Panasonic adopts insulation materials both inside and outside of the unit to guard against condensation and water leaks.

Flat Horizontal Design That Conditions the Interior
Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.

Wireless, Wired Remote Controller
Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
*A wireless remote controller is in the same package with the indoor unit.

Flexible and Easy Installation
A Drain Height of Up to 850 mm from the Ceiling Surface
The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.

Specifications:

Horsepower: 2.0 HP

Cooling Capacity: 17,100 Btu/h

Refrigerant: R32

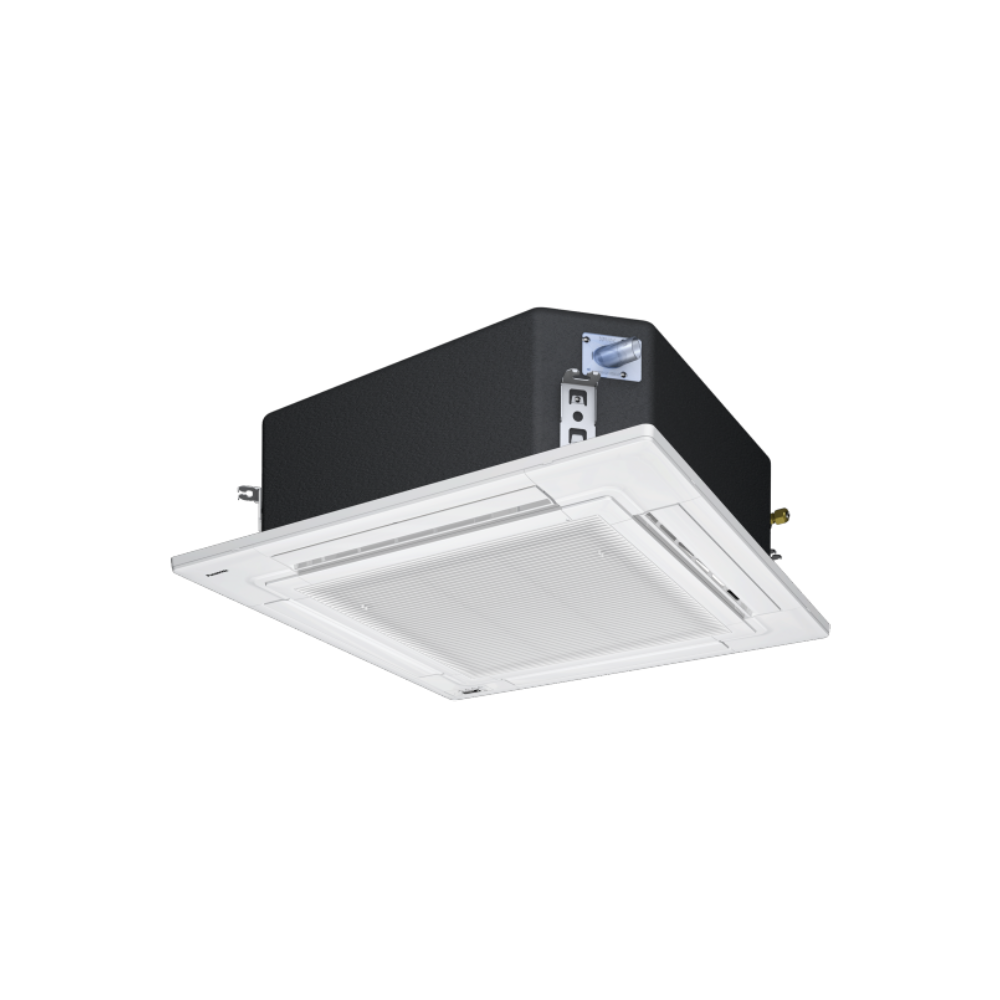

Indoor Unit (S-1821PU3H-1)

Air Volume: 28.5 m³/min, 1,600 cfm

Sound Pressure Level (Hi/Lo): 46/35 dB (A)

Sound Power Level (Hi/Lo): 61/50 dB

Dimension (H × W × D): 25.6 × 84.0 × 84.0 cm

Dimension-Panel (H × W × D): 4.4 x 95 x 95 cm

Net Weight: 21 kg

Net Weight (Panel): 5 kg

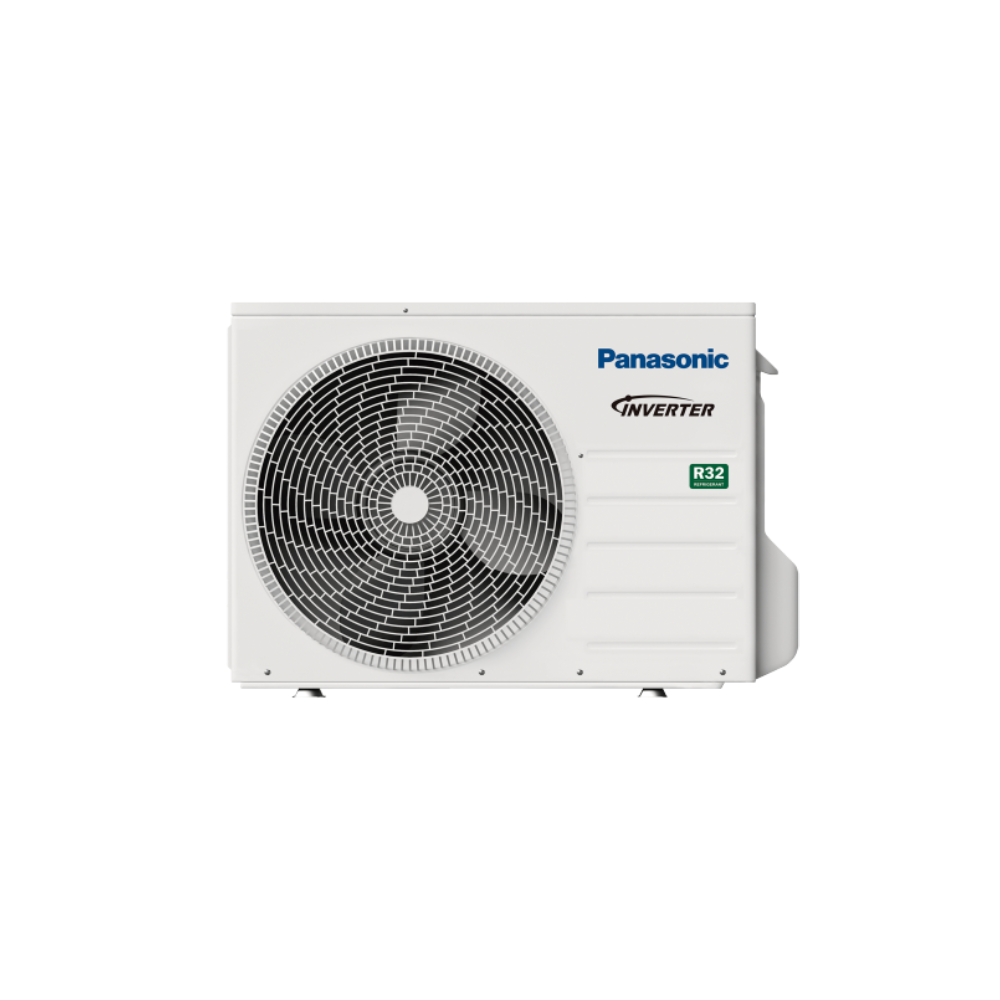

Outdoor Unit (U-18PR1H5-1)

Sound Pressure Level: 49 db (A)

Sound Power Level: 68 dB

Dimension (H x W x D): 61.9 x 82.4 x29.9 cm

Piping Connection: Gas Pipe-12.70 mm, Liquid Pipe-6.35 mm

Pipe Lenght (Min-Max): 5 – 30 m

Elevation Difference: 20 m

Maximun Chargeless Lenght (Max): 10 m

Additional Gas: 15 g/m

Operation Range, Outdoor (Min-Max): 16 -46 °C)
