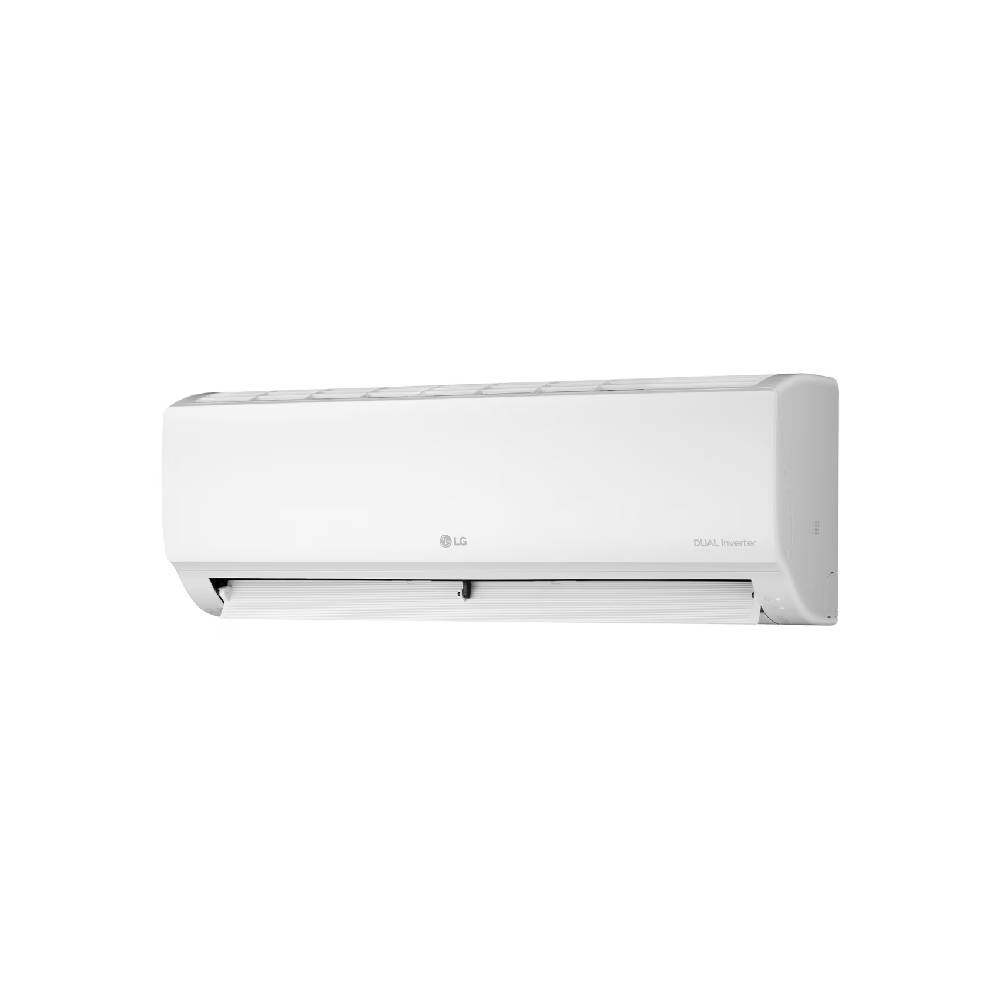

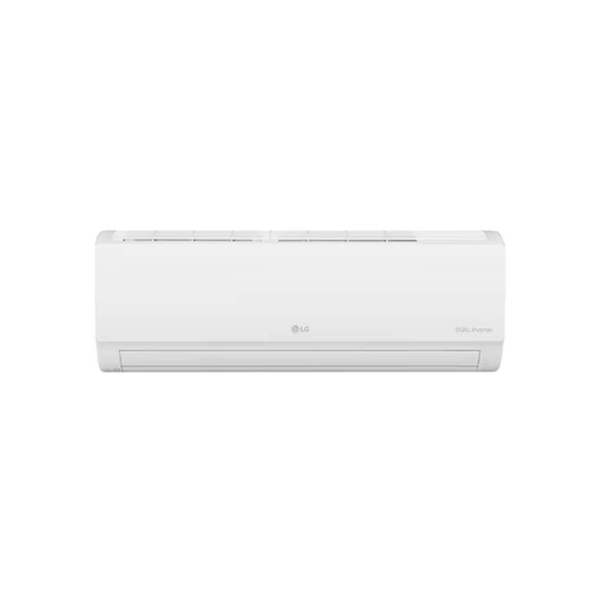

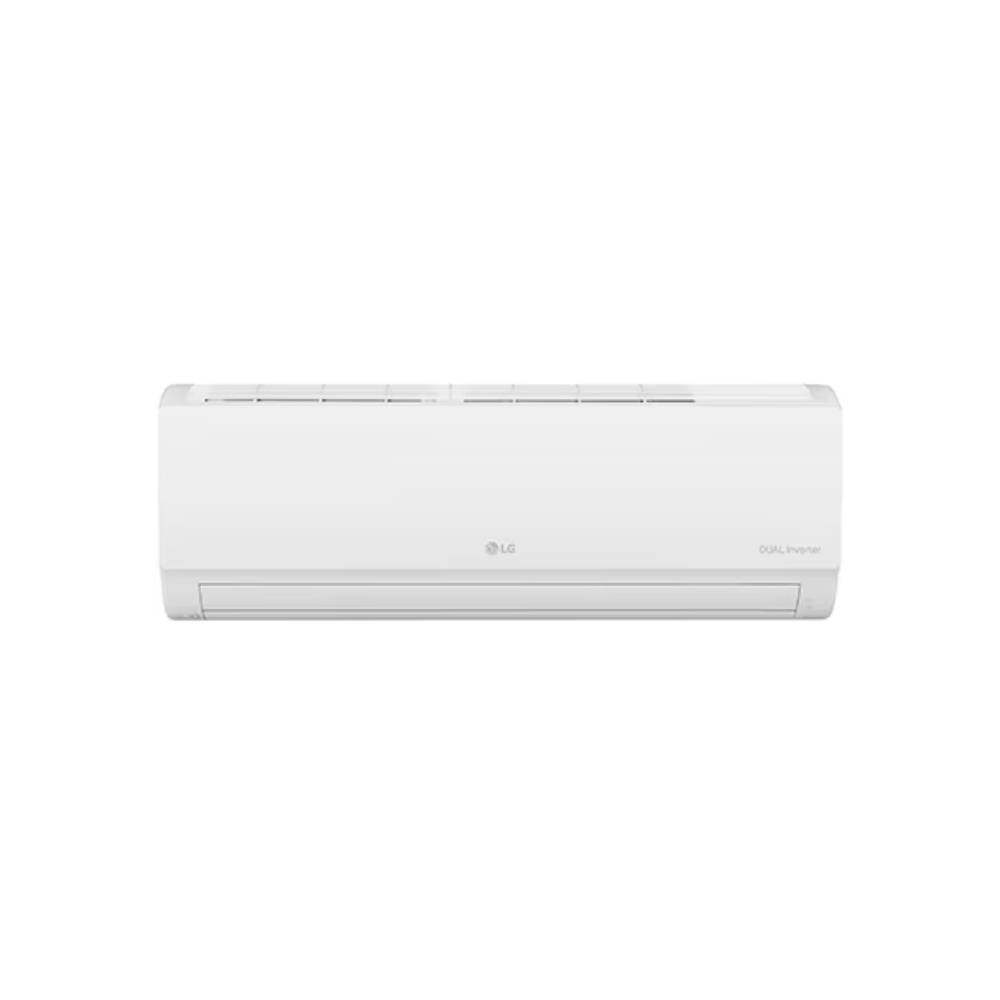

1.0HP Dual Inverter Classic Air Conditioner

Specifications

GENERAL

• Product Type: Wall Mounted
• Est. Cooling Area (Sq. Ft.): N/A
• Est. Heating Area (Sq. Ft.): N/A
• Cooling Capacity Rated/Min(W): 2579 / 410
• Heating Capacity Rated/Min(W): N/A
• Cooling Capacity Max(W): 2696
• Heating Capacity Max(W): N/A
• Cooling Power Consumption Rated/Min(W): 920 / 150
• Heating Consumption Power Rated/Min(W): N/A
• Rated Input Voltage(V, Hz): 220 ~ 240, 50
• Indoor Unit Dimension_WxHxD(mm): 756 x 265 x 184
• Outdoor Unit Dimension_WxHxD(mm): 717 x 495 x 230
• Refrigerant Type: R32
• Sound Power(Cooling) SH/H/M/L/SL(dB(A)): N/A
• Sound Power(Heating) SH/H/M/L/SL(dB(A)): N/A
• Indoor Unit Weight(kg): 7.4
• Indoor Unit Weight(lb.): 16.3
• Outdoor Unit Weight(kg): 20.1
• Outdoor Unit Weight(lb.): 44.3
• Product Type II: Inverter
• HVAC Type: C/O

GLOBAL_ETC.

• Regulated model(Energy): N/A

COOLING

• Fan Speed: 6 Steps
• 4way: Up-Down
• Comfort Air: N/A
• Power Cooling: Yes
• Airflow direction control (Up & Down): Yes(6 Steps)
• Airflow direction control (Left & Right): N/A

HEATING

• Power Heating: N/A

AIR PURIFYING

• PM 1.0 Sensor: N/A
• Air Purifying Display: N/A
• Ionizer: N/A

FILTER

• Micro Filter: N/A
• Antibacteria Micro Filter: N/A
• Dust Filter: N/A
• Allergy Filter: Yes
• Pre Filter: Yes
• Fine Dust Filter: N/A

ENERGY SAVING

• Energy Saving(Cooling): N/A
• Energy Monitoring: N/A
• Energy Display: N/A
• Energy Grade: 4STAR
• Active Energy Control: Yes
• ICA(I control Ampere): N/A
• Dry Contact: N/A

HYGIENE

• UV Nano: N/A
• Auto Cleaning: Yes

CONVENIENCE

• ThinQ(Wi-Fi): N/A
• Smart Guide: N/A
• Reservation: N/A
• Tropical Night Comfort Sleep: N/A
• Filter Alarm: N/A
• Smart Diagnosis: Yes
• Remote Controller: Basic
• On/Off Reservation(24Hr): Yes
• Human Body Detecting: N/A
• Low Noise: N/A
• Stabilizer Free Operation: N/A
• Voice Control (3rd Part device): N/A
• Fan Mode: Yes
• Auto Restart: Yes
• Forced Switch Operation: Yes

DEHUMIDIFICATION

• Humidity Sensor: N/A
• Dehumidification: Yes

OUTDOOR UNIT

• Outdoor Unit Model Name: S3UQ09WAPWL

INDOOR UNIT

• Wall Mounted Model Name: S3NQ09WAPWL

DESIGN

• Color(Body): White
• Color(Discharge): Black
• Display: LED
