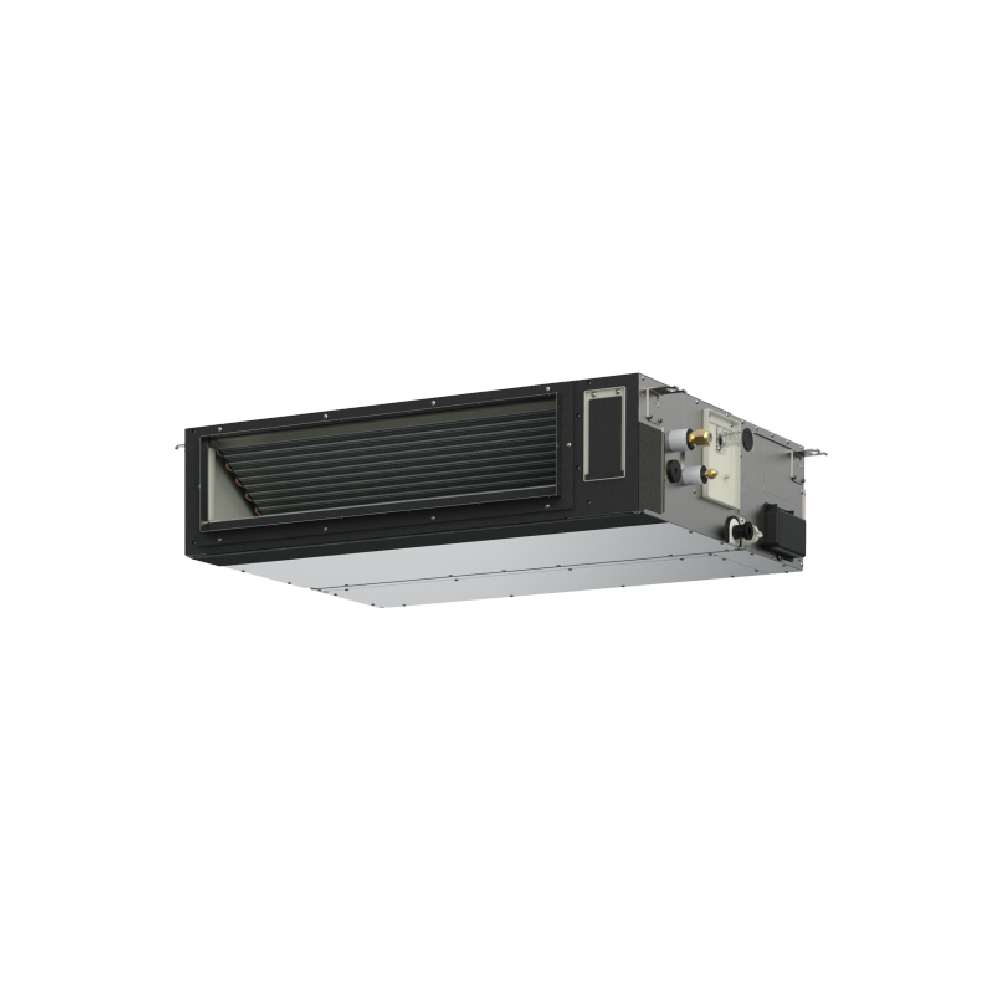

3.0 HP R32 Inverter NX Series Adaptive Ducted Air Conditioner S2430PF3H+U24PR1

More Efficient Air Protection with nanoe X Generator Mark2
24-hour nanoe™ X Air Protection
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

nanoe™ X Effectiveness Proven in Large Space
The nanoe™ X fan mode reduced adhered odour by 0.7 levels* compared to natural reduction after 2 hours of exposure.
*A 1 level reduction in odour intensity is equivalent to a reduction of 90%. Note: (1) Testing method: Verified using the six-level odour intensity scale method in an approximately 378 m³ sized test room (2) Inhibition method: nanoe X Generator Mark2 released (3) Test substance: Surface-attached cigarette smoke odour (4) Test result: Odour intensity reduced by 0.7 levels in 2 hours (KT-19-015089-1)

Benefit from nanoe™ X Even with Long, Curved Ductwork
Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.

Flexible Installation to Maximize the Use of Spaces
Industry-Leading Vertical Installation That Accommodates Even Limited Ceiling Heights
The new NX Series Adaptive Ducted units can be mounted not only horizontally but also vertically without the need for alterations. The unit can be installed in accordance with limited ceiling space and other building conditions. Our groundbreaking drain pan design delivers a new level of flexibility in an industry-leading vertical installation.

Compact Enough to Allow Ceiling Height to be Maintained
The indoor units have also been completely renewed, offering a 40 mm height reduction to only 250 mm*. Its compact 250 mm-high body means it takes up less space behind the ceiling, allowing for a higher ceiling in rooms.
*Compared to the conventional model range.

Smart Power Saving with IoT
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

Enables Air Conditioning Without Disturbing Quiet Spaces
Features a low sound pressure level of 29 dB(A), as quiet as that of quiet whisper (1m). It is ideal for quiet and relaxing spaces, such as hotel lobbies and guest rooms, thanks to its superior quiet performance.

Wired Remote Controller
Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.

Flexible Installation
Compact Body with Powerful 150 Pa ESP
The indoor units have also been completely renewed, offering a 40 mm height reduction to only 250 mm* and a weight reduction of up to 10%, all while maintaining the same powerful 150 Pa.
*Compared to the conventional model range.

Selectable Air Inlet Position

The air inlet position is adjustable via a movable panel to allow both rear or bottom entry, depending on the duct installation.

Specifications:

Cooling Capacity (Rated): 24,200 BTU/h (7.10 kW)
Power Input (Rated): 2.27 kW
Rated Current [Max]: 10.1 [12.0]

Indoor Unit S-2430PF3H:
Air Volume (High): 21.0 m³/min
External Static Pressure (Standard): 30 Pa
Sound Pressure Level (High/Low): 35 / 29 dB(A)
Sound Power Level ( High/Low): 58 / 52 dB
Dimensions (H × W × D): 250 × 1,000 × 730 mm
Net Weight: 30 kg

Outdoor Unit U-24PR1H5-1:

Sound Pressure Level: 51 dB(A)

Sound Power Level: 70 dB
Dimensions (H × W × D): 619 × 824 × 299 mm
Net Weight: 33 kg
Pipe Lenght (Min-Max): 5–30 m
Elevation Difference: 20 m
Operation Range (Min-Max):16–46 °C
